XBR54H

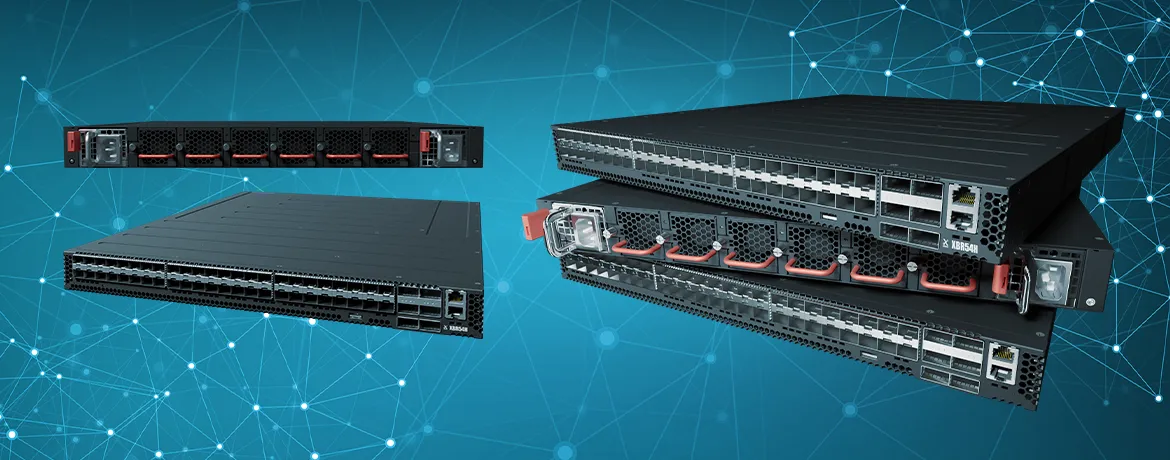

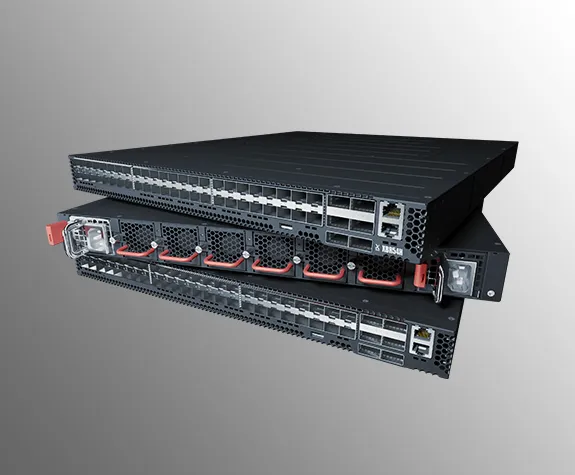

About XBR54H

The XBRIDGE router Family offers comprehensive solutions for service provider networks. The XBR54H is the aggregation layer router in this family, supporting a wide range of features including dynamic routing protocols such as BGP, OSPF, and IS-IS. Additionally, this router’s support for MPLS L2/L3 VPN capabilities allows service providers to create secure and scalable private networks, ensuring efficient connectivity between their sites. The QoS capabilities of the XBR54H router enable effective traffic management by prioritizing and allocating network resources to meet the specific requirements of various services. Overall, the XBR54H router, with its rich set of features, is an ideal choice for establishing secure and scalable connectivity at the service provider network level.

Key Applications

An affordable option as a ToR (Top-of-Rack) switch in data center networks, supporting 10GbE and 100GbE interfaces, enabling seamless data aggregation within the data center environment.

An access/aggregation layer router in service provider networks, providing reliable and scalable connectivity, and enabling efficient aggregation of traffic from multiple customers or different network segments.

An interface for integrated communications and data transfer in enterprise networks through advanced routing features and support for secure VPN connections.

Key Features

48 SFP+ ports supporting 10GbE (DAC, AOC, 10GBASE-SR/LR) or 1GbE (1000BASE-T/SX/LX) and 6 QSFP28 ports supporting 100GbE (100GBASE-SR4/LR4).

Up to 1.6 Tbps bidirectional bandwidth with a non-blocking architecture, delivering linear performance under full load and sub-microsecond latency.

Support for a comprehensive set of MPLS features including Label Switching, L3VPN, and L2VPN.

Hot-swappable and redundant power supplies and fans.

Scalable Ethernet switching and routing at layers 2 and 3 with QoS support and a full suite of routing capabilities based on IPv4 and IPv6 standards, including:

OSPF version 2 (for IPv4) and version 3 (for IPv6)
IS-IS protocol for IPv4
BGP protocol for IPv4 and IPv6

Use Cases

IP Metro Network: Utilizes advanced routing for managing traffic in branches, data centers, and provider networks with stable aggregation.

Datacenter Layer 2 and Layer 3: Hybrid model to limit fault domains and enhance scalability.

« Specifications »

Hardware

Performance:

Switching Capacity: 1.6 Tbps
Forwarding Rate: 720 Mpps
Jumbo Frame: 9 Kbytes
16MB on-chip buffering
Deep DRAM buffering: 6 GB
MAC Table (LEM): 750 k

Key Components:

CPU Modules: Processor: Intel Atom® C2538 4C 2.4GHz; Memory: DDR3 SO-DIMM 8 GB x 2; mSATA: 32 GB

Physical and Environmental:

Dimensions (WxDxH): 440 x 548 x 44 mm (17.32 x 21.57 x 1.73 in)
Weight: 9.34 kg (20.59 lb), with two installed PSU modules
Fans: hot-swappable 5+1 redundant fans
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 5% to 95% non-condensing

Power:

PSUs: 2 redundant, load-sharing, hot-swappable AC or -48 VDC
AC input range: 90 V ~ 240 VAC
DC input range: -36 ~ -72 VDC
AC 110V: Min 232 W, Max 327 W
AC 220V: Min 231 W, Max 337 W
DC 48V: Min 229 W, Max 349 W

Ports:

Switch Ports: 48 x SFP+ each supporting 10 GbE or 1 GbE; 6 x 100G QSFP28 each supporting 1×40/100GbE
Management ports on port side: 1 x RJ-45 serial console; 1 x RJ-45 100/1000BASE-T management port; 1 x USB Type A storage port

Supported Optics and Cables:

SFP+ Ports: 10GBASE-CR DAC (up to 3m passive, 10m active); 10GBASE-SRL/SR (up to 100/300m Om3 MMF); 10GBASE-LR (up to 10km SMF); 10GBASE-ER (up to 40km SMF); 1000BASE-SX/LX/T
QSFP28 Ports: 100GBASE-SR4/LR4; QSFP28 AOC/DAC Cables (up to 30m/5m)

Software

Layer 2 Switching: VLAN, STP/MSTP/RSTP/RPVST+, LLDP v2, LACP, Provider Bridging, BPDU Protect, etc.
Layer 3 Routing: Route Redistribution, VRF, VRRP, BGP/RIP/OSPF/ISIS/BFD
MPLS: Label Distribution, VPLS/VPWS, BGPVPN L3VPN
Multicast Features: PIM, IGMP
Quality of Service (QoS): DiffServ, policing/marking/shaping, WRR/WFQ/SP, WRED, 802.1p remarking
Management: CLI, TACACS+/RADIUS, SNMPv3, sFlow, DHCP, NTP, syslog, SPAN/RSPAN
Security: SSH, Storm control, ACLs
Chassis Monitoring: Temperature, Fan, Power, CPU, MIB/Traps
Digital Diagnostics Monitoring: Temperature, Power, MIB/Traps

Safety and Compliance

Safety: CB, UL/CUL
EMI: CE Mark EN55032/24, FCC Part 15, VCCI, BSMI
Environmental: NEBS Level 1, RoHS 2.0, WEEE
