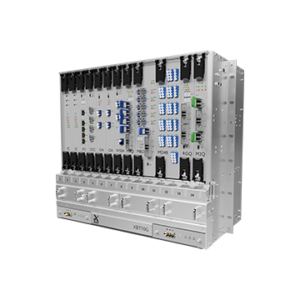

XBT10Q Backbone Transmission Solution
About XBT10Q
XBT10Q OTN/DWDM optical transmission system product is an advanced, cost-effective and flexible product that is designed to meet today’s and future needs of telecommunication networks at different levels of the network. By using this equipment, the required network configuration is easily implemented, and at the same time, by simplifying the network architecture in various topologies, the operational complexities in terms of network repair, maintenance, and control, as well as the initial costs, are reduced. However, if necessary, it will be possible to change and reshape the network easily. XBT10Q is available to be used in point-to-point, ring and mesh topologies and can be also utilized in the optical transmission platforms of urban, intercity, whole country and international backbone.
Key Features
- 96 Wavelengths using DWDM Technology
- Each wavelength supports up to 200Gb/s and 400Gb/s in odd/even modes.
- Total transmission capacity of 19.2 Tb/s to 25.6 Tb/s
- Supporting various point-to-point linear mesh and ring topologies
- 2400km of transmission without electrical regenerator
- Utilizing ROADM technology
- Supporting all kinds of services on the client side (STM-1/4/16/64, OC-3/12/48/192, OTU2/4/UC4, FE/GE/10GE/100GE/200GE/400GE)
- SDN-based control layer
- CDC configuration in stations for all 96 wavelengths by WSS
- Transponders and Muxponders with the ability to adjust the wavelength
- Transmission based on OTN protocol according to ITU-G709 standard with FEC support
- 3R Signal Reconstruction (Retime, Reshape & Retransmit)
XBRIDGE XBT10Q Specifications
| Equipment Model | XBRIDGE XBT10Q |
| Dimensions (W/D/H) mm | 440 x 287 x 398 (9 U) |
| Services | STM-1/STM-4/STM-16/ STM-64 OC-3/OC-12/OC-48/ OC-192 OTU2/OTU2e/OTU4 FE/GE/10GE/100GE 200GE/400GE |
| Line Interface | OTU2/OTU4/OTUC2 OTUC4 |
| Number of Wavelengths | 96 |
| MPLS-TP Support | YES |
| Wavelength Capacity | 400 Gb/s, 200 Gb/s, 100 Gb/s, 10Gb/s |
| System Capacity | 24.8 Tb/s |
| Topology | Point-to-point, Ring, Chain, Mesh |
| Pluggable Modules | SFP, eSFP, SFP+, XFP, QSFP28, CFP, CFP2, QSFP56 |
| Operating Environment Temp. | -5 °C ~ 75 °C |
| Humidity | 5 % ~ 95 % |
| Number of Card-slots System | 4 |
| Service | 10 |
| Total | 14 |
| Input DC Power | -36 V ~ -72 V |
| Max. Power Consumption | 500 W |
| MTBF | 25 years |
