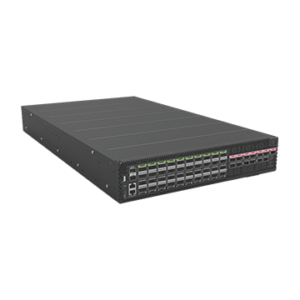

XBR40H Core Router

About XBR40H

The XBR40H is a robust, flexible, and carrier-grade IP/MPLS router, purpose-built for high-performance service provider networks. It can be deployed in metro and core environments to deliver scalable, next-generation transport services with maximum efficiency.

With 100GE service ports, the XBR40H combines carrier-class reliability and performance. It supports fault and performance monitoring, nonstop routing across both control and data planes, and comprehensive high-availability capabilities.

Designed for large-scale traffic demands, the XBR40H provides 8GB deep buffering, 2,000 Mpps packet throughput, and 4 Tbps switching capacity. In addition, its integrated knowledge-based processor (TCAM) enables up to 16 parallel lookups, delivering billions of decisions per second ensuring fast, intelligent, and reliable forwarding for mission-critical service provider applications.

High-performance 100GbE core router designed for telecom applications. It features low-latency, high-bandwidth memory for accelerated table lookup, packet buffering, and control processing. With high port density and low power consumption, it ensures efficient operation. The system includes 1+1 hot-swappable power supplies and 3+1 hot-swappable fan modules for enhanced reliability and continuous operation.

Key Features and Benefits

  • High-performance 100GbE core router for telecom applications.
  • Accelerated table lookup, packet buffering, and control memory with low latency high bandwidth memory
  • High density ports with low power consumption
  • 1+1 hot swappable PSU FRU
  • 3+1 hot swappable Fan FRU

Use Cases

  • IP Backbone: Aggregates mobile RAN traffic and extends connectivity into the IP backbone with scalable, low-latency transport.
  • Datacenter Interconnect: Provides high-capacity, low-latency DCI with redundancy for business continuity and workload mobility.

Specifications

Hardware

  • Physical and Environmental:
    • Dimensions (WxDxH): 436 x 762 x 87.6 mm (17.17 x 30 x 3.45 in.)
    • Weight: 26.7 kg (58.9 lbs.)
    • Fans: hot-swappable 3+1 redundant fans
    • Operating Temperature: 0°C to 45°C (32°F to 113°F)
    • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Humidity: 5% to 85% (RH), noncondensing altitude: 1,829 m (6,000 ft.)
  • Ports:
    • Switch Ports: 40 x 100 GbE QSFP28 service ports support 40GE, 50GE and 100GE modes; 13 x 400 GbE QSFP-DD fabric ports (Reserved)
    • Management Ports on Front Panel: 1 x RJ-45 + micro-USB serial console; 1 x RJ-45 1000BASE-T management port; 2 x 10GBase-X SFP+ management ports; 1 x USB 2.0 Type-A general purpose port; 1 x USB Type A storage port
  • Key Components:
    • CPU module: Processor: Intel Broadwell-DE 8 core @ 2.0 GHZ; Memory 2 x 32GB DDR4 RDIMM with ECC support; Storage: 2 x M.2 SATA SSD 128GB
  • Performance:
    • Switching Capability: 4 Tbps
    • Forwarding Rate: 2000 Mpps
    • Jumbo Frame: 9 Kbytes
    • 32MB on-chip buffering
    • Deep DRAM buffering: 8 GB
    • High capacity external TCAM for expanded table sizes and statistics
  • Power:
    • PSUs: 2 redundant, load-sharing, hot-swappable AC or DC modules
    • AC input range: 200 ~ 240V, 12.5A, 50 ~ 60Hz
    • DC input range: -40 ~ 72V, 60 ~ 33A
    • Typical power: 750 Watts (no transceiver)
  • Supported Optics and Cables:
    • Transceivers: 100GE QSFP28 SR4, 100GE QSFP28 LR4, 100GE QSFP28 Er4
    • Cable Types: 100GE QSFP28 ACC (Active Copper Cable), 100GE QSFP28 AOC (Active Optical Cable),RJ45/RJ48

Software

  • Layer2 Switching: VLAN, STP/MSTP/RSTP, LLDP v2, LACP, Provider Bridging, BPDU Protect, etc.
  • Layer3 Routing: IP Broadcast/Subnets, Route Redistribution, VRF, BGP/RIP/OSPF/ISIS/BFD/VRRP IPv4/IPv6
  • MPLS: Label Distribution Protocol(LSR and LER Support), L3VPN, L2VPN
  • Quality of Service (QoS): DiffServ, QoS L2 and L3 policing/marking, WRED/ACL/DSCP, etc.
  • Management: Role-based CLI, TACACS+/RADIUS, SNMP, sFlow, DHCP, NTP, syslog, SPAN/RSPAN
  • Security: Secure login, SSH, Storm control, ACLs
  • Chassis Monitoring: Temperature/Fan/Power/CPU, MIB/Traps
  • Digital Diagnostics Monitoring: Temperature/Power, MIB/Traps
